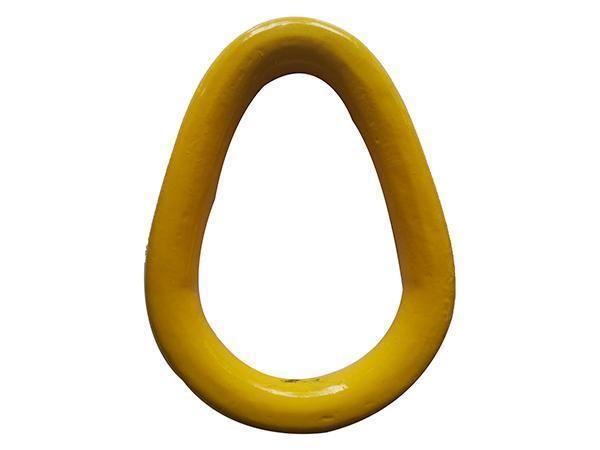

Anneau de levage ovale

Spécifications
Fabriqué à partir d’acier allié forgé de haute intensité et de dureté supérieure, et soumis à un processus de traitement thermique.

Paramètres (Unité: mm)
Code Poids (kg) Limite de charge de travail (t) Charge de rupture (t) A B C D
SLR034-3/8 0.1 1.6 8 10 28.5 19 10
SLR034-1/2 0.25 3.2 16 12.5 38 25.5 12.5
SLR034-5/8 0.5 4.1 20.5 16 47.5 32 16
SLR034-3/4 0.8 5.6 28 19 57 38 19
SLR034-7/8 1.4 6.4 32 22 67 44.5 22.2
SLR034-1 1.9 11 55 25 76 51 25.4
SLR034-1-1/8 2.92 13.9 69.5 28 86 57 28.5
SLR034-1-1/4 3.75 16.3 81.5 32 95 63.5 32
SLR034-1-3/8 5.12 19.5 97.5 35 105 70 35
SLR-34-1-1/2 6.5 24.6 123 38 114 76 38
SLR034-1-5/8 8.4 28.4 142 41.5 124 82.5 41.3
SLR034-1-3/4 10.21 38.5 192.5 44.5 133 89 44.5
SLR034-1-7/8 13.15 43.5 217.5 48 143 95.5 47.6
SLR034-2 15.42 46.5 232.5 51 152.5 102 51
SLR034-2-1/4 21.78 64.9 324.5 57.5 171.5 114.5 57
SLR034-2-1/2 29.94 66.8 334 63.5 190.5 127 63.5
SLR034-2-3/4 39.92 98.4 492 70 209.5 140 70
SLR034-3 51.71 103.4 517 76.5 229 152.5 76
SLR034-3-1/4 66.23 118.9 594.5 82.5 248 165 82.5
SLR034-3-1/2 82.10 126.6 633 89 257.5 178 89
SLR034-4 122.93 169.2 846 102 305 203.5 101.5
